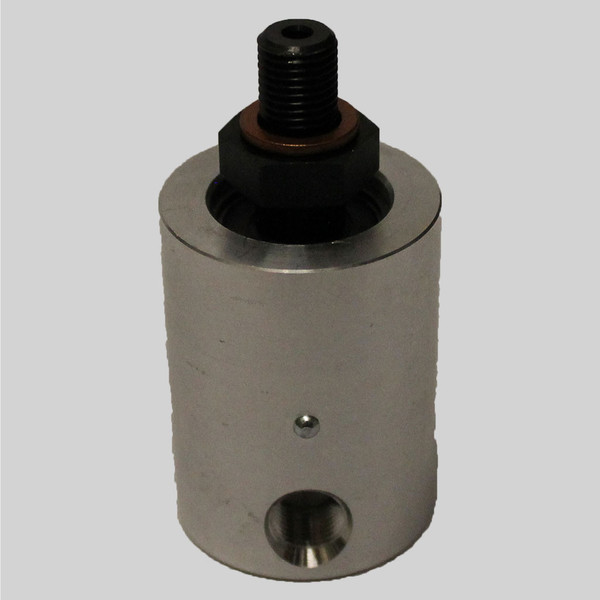

Aerovent F100167 Rotary Union
The Aerovent F100167 rotary union is a pneumatic replacement component associated with the blade-pitch control system in AXICO FPAC controllable-pitch vaneaxial fans. It provides the rotating air connection used to deliver pressure to the rotor diaphragm, allowing the fan’s pneumatic mechanism to change blade pitch in response to the positioner. Aerovent documentation lists the corresponding FPAC spare part as F10016701, so the complete fan model, serial number, and existing part number should be confirmed before replacement.
Part Details:
- Pneumatic rotary union for Aerovent AXICO FPAC controllable-pitch fan assemblies
- Transfers operating air to the diaphragm incorporated into the rotating fan hub
- Supports the pneumatic mechanism used to vary fan blade pitch
- Part selection should be verified using the fan model number, serial number, and existing component number
Documentation:
FAQS:
Q: What does the Aerovent F100167 rotary union do?
A: The Aerovent F100167 rotary union provides a rotating pneumatic connection that carries operating air to the diaphragm in an AXICO FPAC fan rotor. Pressure applied to this diaphragm moves the internal blade-pitch mechanism, while the fan’s positioner regulates that pressure in response to the control signal.
Q: Is Aerovent F100167 the same part as F10016701?
A: While the F100167 and F10016701 share similar part numbers one should verify the complete number on the existing component and confirm the fan model and serial number before ordering.
Q: Which Aerovent fans use the F100167 rotary union?
A: Aerovent documentation places the rotary union in the pneumatic system of AXICO FPAC controllable-pitch vaneaxial fans. Confirm the fan nameplate information and existing rotary-union number before selecting a replacement.
Q: How can I verify that this is the correct rotary union for an Aerovent AXICO fan?
A: Use the fan model number and serial number, then compare the existing component’s complete part number with the replacement listing. Provide the fan model, fan serial number, part description, part number, and required quantity when ordering spare parts.
Q: When should an Aerovent AXICO FPAC rotary union be inspected or replaced?
A: Aerovent recommends replacing the rotary union every two years as a preventive maintenance measure and notes that service life depends on compressed-air quality. If an FPAC fan operates erratically or cannot maintain diaphragm pressure, inspect the air line, diaphragm-cover connections, and rotary union for leakage rather than assuming the rotary union is the failed component.
