Product Overview

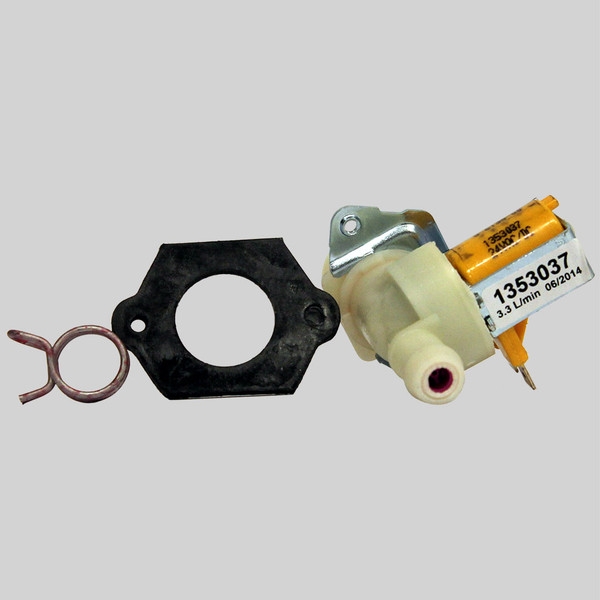

Condair 2573524 Nortec Fill Valve
The Condair 2573524 single fill valve is an OEM replacement water-inlet valve for compatible 100 and 200 lb/hr Condair and Nortec electrode steam humidifiers. Rated at 3.3 L/min, the valve opens when commanded by the humidifier controller to admit water into the fill system, allowing the cylinder water level to increase as steam demand requires.
Part details:
- OEM Condair/Nortec single fill valve assembly
- Manufacturer part number: 2573524
- Controls incoming water flow to the humidifier fill system
- Rated flow: 3.3 L/min
- Compatible with supported EL, NHEL, NHTC, NHPC, and NHMC units
- Intended for applicable 100 and 200 lb/hr models across all voltages
Documentation:
FAQs:
Q: What does the Condair 2573524 fill valve do?
A: The Condair 2573524 fill valve controls the flow of supply water into a compatible electrode steam humidifier. When the controller calls for additional water, the valve opens so water can enter the fill system and increase the water level in the steam cylinder.
Q: Which humidifiers are compatible with the Condair 2573524 fill valve?
A: Condair lists part 2573524 for compatible EL, NHEL, NHTC, NHPC, and NHMC electrode steam humidifiers in 100 and 200 lb/hr configurations across all voltages. Confirm the humidifier series, capacity, voltage, and serial number before ordering because parts requirements can vary by equipment configuration.
Q: Does a 200 lb/hr Condair humidifier use more than one 2573524 fill valve?
A: Applicable NH-EL 200 lb/hr configurations are documented with two 2573524 fill valves, while applicable 100 lb/hr configurations use one. Verify the required quantity against the unit’s model, voltage, phase, serial number, and current parts diagram.
Q: What symptoms may indicate that the Condair 2573524 fill valve needs inspection or replacement?
A: A fill timeout, unusually slow cylinder filling, or failure to admit water may justify checking the fill-water system, but these symptoms do not confirm that the valve has failed. A closed water supply, blocked fill-valve strainer, leaking drain valve, supply-pressure issue, or excessive system backpressure can produce similar symptoms, so the system should be evaluated by qualified service personnel.
Q: What is the flow rate of the Condair 2573524 fill valve?
A: The Condair 2573524 fill valve has a rated flow of 3.3 L/min. Condair’s NH-EL technical documentation identifies part 2573524 as a single fill valve with this flow rate for applicable higher-capacity humidifier configurations.
