Product Overview

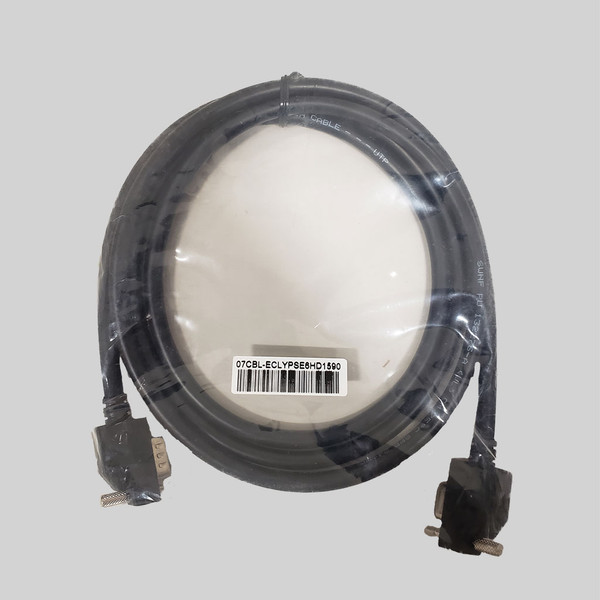

Distech Eclypse 07CBL-ECLYPSE6HD1590 Cable
Part Details:
- Distech Controls ECLYPSE communication cable, model 07CBL-ECLYPSE6HD1590
- Designed for multiple-row panel installations
- Equipped with HD15 connectors
- 6 ft (1.8 m) cable length
- Compatible with ECY-S1000 Series controllers
FAQs:
Q: What is the Distech Eclypse 07CBL-ECLYPSE6HD1590 cable used for?
A: The Distech Eclypse 07CBL-ECLYPSE6HD1590 cable is designed for Connected System Controller multiple-row panel installations. It helps facilitate communication between controllers and other building automation system components, allowing data and signals to be transmitted throughout the system.
Q: Which controllers are compatible with this cable?
A: This cable is designed for use with compatible Distech Controls ECLYPSE controllers and building automation systems. Common applications include Connected System Controllers and other ECLYPSE platform devices used in multi-row control panel installations. Always verify compatibility with your specific controller model before ordering.
Q: What are the key specifications of the 07CBL-ECLYPSE6HD1590 cable?
A: Key specifications include: Length: 6 feet, Connector Type: HD15 connectors, Application: Communication connections for Connected System Controller multiple-row panel installations and building automation systems.
Q: What are HD15 connectors?
A: HD15 connectors are multi-pin connectors commonly used for communication and control applications. They provide a secure connection between compatible controllers and system components within building automation systems.
Q: Why is this cable important in a building automation system?
A: The cable enables reliable communication between connected controllers and devices. Proper communication is essential for monitoring equipment, sharing system data, coordinating control functions, and maintaining efficient building operations.
Q: Can this cable be used as a replacement part?
A: Yes. The 07CBL-ECLYPSE6HD1590 cable can be used to replace a damaged, worn, or missing cable in a compatible Distech Controls system. Using the correct OEM replacement helps maintain reliable system performance.
Q: How do I know if this is the correct replacement cable?
A: Check the existing cable's part number or review your equipment documentation. The OEM part number for this cable is 07CBL-ECLYPSE6HD1590. Matching the part number helps ensure proper fit and compatibility.
Q: What can happen if a communication cable fails?
A: A damaged or failed communication cable can interrupt data transmission between controllers and connected devices. This may affect monitoring capabilities, equipment coordination, alarms, or system performance.
Q: Is this an OEM Distech Controls part?
A: Yes. The 07CBL-ECLYPSE6HD1590 is a genuine Distech Controls component designed for use with compatible ECLYPSE building automation systems.
Q: Can this cable be used for new installations?
A: Yes. The cable is suitable for both new installations and replacement applications where compatible Distech Connected System Controllers are being installed or serviced.
Q: Does the cable carry both communication signals and power?
A: The cable is intended to support communication connections between compatible system components. Consult the controller documentation for specific details regarding signal and power transmission requirements.
Q: Is the 6-foot cable length sufficient for most control panel applications?
A: The 6-foot length is designed for use within control enclosures and multi-row panel configurations. However, installers should verify that the cable length meets the requirements of their specific installation.
Q: Does this cable require special tools for installation?
A: The cable typically connects directly to compatible HD15 ports on supported equipment. However, installation procedures should follow the manufacturer's guidelines and applicable safety practices.
Q: Where is this cable commonly installed?
A: The 07CBL-ECLYPSE6HD1590 cable is commonly installed inside building automation control panels and cabinets where Connected System Controllers and related control modules are deployed.
- Compatible with ECY-6x0 Series and ECY-APEX Series controllers
