Product Overview

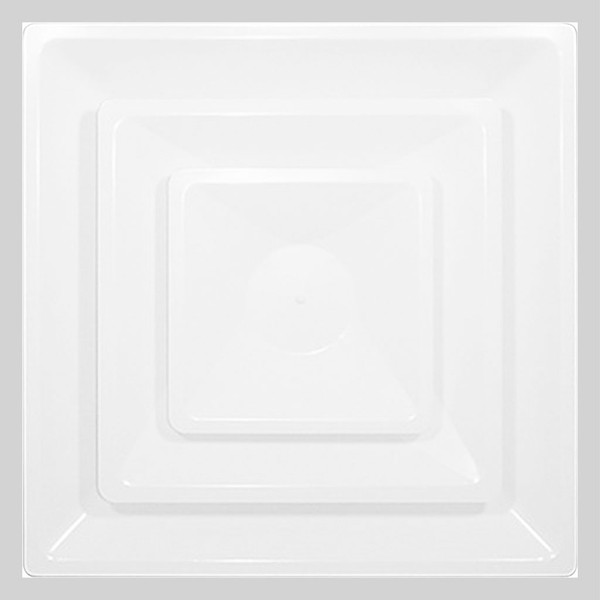

Krueger 1450 6" Diffuser
The Krueger 1450F2306 is a steel, 3-cone louvered-face ceiling diffuser with a 6-inch nominal round neck and an F23 lay-in T-bar frame. It distributes supply air in a fixed 4-way pattern and is intended for commercial HVAC ceiling applications where a round duct connection and lay-in diffuser panel are required.
Part Details:
- Steel 1450-series louvered-face ceiling diffuser
- Three die-stamped cones with a fixed 4-way discharge pattern
- 6-inch nominal round neck with a 5 7/8-inch actual neck dimension
- F23 lay-in T-bar frame for compatible suspended ceilings
- One-piece stamped cone construction without mitered corner joints
- Two integral earthquake tabs
Documentation:
FAQs:
Q: What is the Krueger 1450F2306 diffuser used for?
A: The Krueger 1450F2306 distributes conditioned supply air from a round duct into a room through a ceiling-mounted, fixed 4-way diffuser. Its three-cone face is intended for commercial air-distribution applications, including systems with changing supply-air volumes.
Q: Does the Krueger 1450F2306 have a 6-inch duct connection?
A: Yes. The “06” designation identifies a 6-inch nominal round neck. Confirm the neck size, frame, and panel requirements against the existing diffuser or mechanical schedule before ordering.
Q: What does F23 mean on a Krueger 1450 diffuser?
A: F23 identifies Krueger’s lay-in T-bar frame configuration for a compatible suspended-ceiling grid. Because the frame code does not provide every ordering detail, the required panel size, accessories, and finish should also be confirmed.
Q: Is the Krueger 1450F2306 the same as the aluminum 51450 diffuser?
A: No. The Krueger 1450 is constructed from steel, while the 51450 is the aluminum version of the 3-cone diffuser. The two models should not be treated as interchangeable without confirming the required material and complete configuration.
Q: What should be confirmed before replacing a Krueger 1450 ceiling diffuser?
A: Confirm the series, neck size, discharge pattern, frame designation, panel size, accessories, and finish. For this product, the identifying details are the 1450 steel series, 6-inch nominal round neck, and F23 lay-in frame, but the complete configuration should be checked against the existing diffuser label, project submittal, or mechanical schedule.
