Product Overview

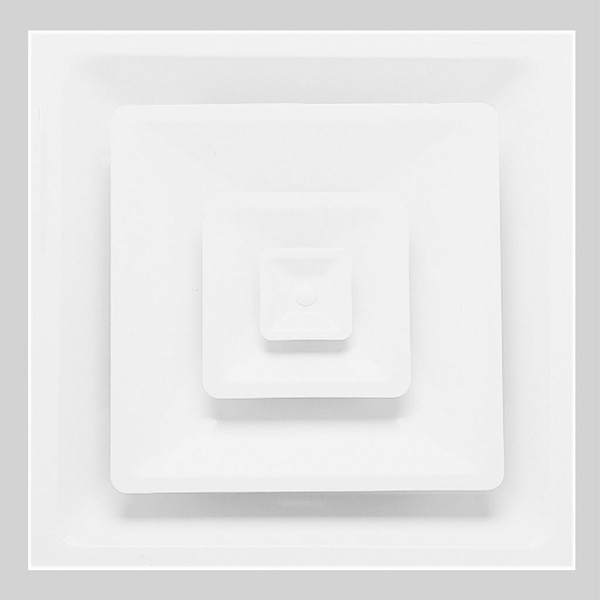

Krueger 1400 12" Diffuser with 4-Cones 24x24
The Krueger 1400 12" 4-Cone 24" x 24" Louvered Face Diffuser is a steel ceiling air outlet that distributes supply air in four directions. Its 24" x 24" face is configured for a lay-in T-bar ceiling using Krueger's F23 frame, with a 12-inch round duct connection.
Parts Details:
- Product type: Steel louvered face ceiling diffuser with a four-cone design
- Air distribution: Four-cone construction with a 4-way discharge pattern
- Neck size: 12-inch round duct connection
- Panel size: 24" x 24"
- Frame: Krueger F23 configuration for lay-in T-bar ceilings
- Construction: 22-gauge steel body with four die-stamped cones
Documentation:
FAQs:
Q: What is the Krueger 1400 12" 24x24 diffuser?
A: The Krueger 1400 is a steel, louvered-face ceiling diffuser with four cones and a round duct connection. This configuration has a 24" x 24" panel, 12" round neck, 4-way air pattern, and F23 lay-in T-bar frame
Q: What size duct connection does this Krueger diffuser use?
A: This configuration uses a nominal 12-inch round neck for connection to round duct. Krueger's dimensional data specifies an actual neck dimension of 11 7/8 inches for the nominal 12-inch neck
Q: Is this diffuser designed for a T-bar ceiling?
A: Yes. The F23 frame is Krueger's lay-in T-bar configuration. Krueger also offers other 1400-series frame configurations, so the frame type should be checked when identifying a replacement.
Q: What airflow pattern does the Krueger 1400 diffuser have?
A: The configuration uses a 4-way air pattern. The four-cone louvered face distributes supply air in four directions from the ceiling diffuser.
Q: Is the Krueger 1400 diffuser steel or aluminum?
A: The 1400 model is steel. Krueger identifies the 51400 as the corresponding aluminum louvered ceiling diffuser, so the two model numbers should not be treated as identical replacement products when material is important.
