Schneider Pop Top Actuator (AH13B020)

(No reviews yet) Write a Review
$114.28
SKU:
AH13B020
MPN:
AH13B020
Condition:
New
Availability:
Usually ships within one business day.
Adding to cart… The item has been added

Product Overview

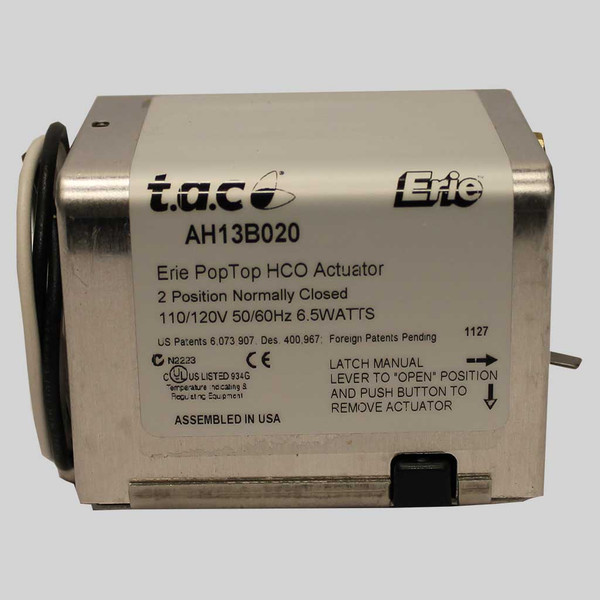

Schneider AH13B020 Pop Top Actuator

The Schneider Electric Erie PopTop AH13B020 is a 110–120 VAC, high close-off actuator for two-position operation of compatible PopTop zone-valve bodies. It uses a normally closed spring-return configuration, general-temperature construction, and 18-inch wire leads for hydronic heating and cooling applications such as fan coils, baseboards, and air handlers.

Part Details:

  • Exact manufacturer part number AH13B020; actuator-only replacement for compatible Erie PopTop valve bodies
  • 110–120 VAC input: 110 VAC at 50 Hz or 120 VAC at 60 Hz
  • Two-position on/off control with normally closed spring-return action
  • High close-off actuator, identified by the “H” actuator-type position in the manufacturer’s part-number system
  • General-temperature rating with 18-inch standard wire leads and no auxiliary end-switch option indicated by the AH13B020 part number
  • Manufacturer-listed operating characteristics include 6.5 W/7.5 VA power requirements, 25-second maximum powered travel at 60 Hz, and 9-second maximum spring-return time

Documentation:

FAQs:

Q: What is the Schneider Electric AH13B020 actuator used for?
A: The Schneider Electric AH13B020 operates a compatible Erie PopTop zone-valve body using two-position, normally closed spring-return control. It is intended for valve applications in hydronic heating and cooling equipment, including fan coils, baseboards, and air handlers.

Q: What are the voltage, control, and wiring specifications for AH13B020?
A: AH13B020 is a 110–120 VAC, two-position actuator with spring return, normally closed action, and 18-inch wire leads. The manufacturer’s broader PopTop specification gives 110 VAC at 50 Hz or 120 VAC at 60 Hz, 6.5 W/7.5 VA power requirements, 25-second maximum powered travel at 60 Hz, and 9-second maximum spring return.

Q: Is AH13B020 a normally closed or normally open actuator?
A: AH13B020 is a normally closed actuator. When control power is removed, the spring-return mechanism returns the compatible valve to its normally closed position. Confirm the valve application and complete replacement part number before substituting it for a normally open configuration.

Q: Will the Schneider AH13B020 fit my existing Erie PopTop valve?
A: AH13B020 is intended for compatible Erie PopTop valve bodies, but compatibility should be confirmed from the complete actuator and valve-body identification rather than the PopTop name alone. Verify AH13B020 on the existing actuator label and compare the required voltage, normally closed action, high close-off type, general-temperature rating, and 18-inch lead configuration before ordering.

Q: What is the difference between AH13B020 and AG13B020?
A: AH13B020 is the high close-off version, while AG13B020 is the corresponding general close-off actuator configuration; both listings describe 110–120 VAC, normally closed, general-temperature PopTop actuators with 18-inch leads. The two should not be treated as automatically interchangeable because the required close-off capability depends on the valve body, Cv, and system differential pressure.
