Product Overview

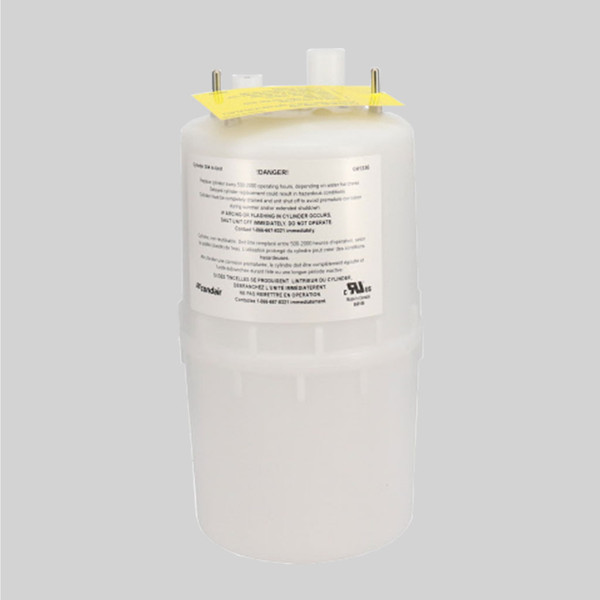

Condair 201 Steam Cylinder (151-9001)
The Condair/Nortec 201 Cylinder, part number 1519001, is an OEM replacement steam cylinder for select electrode steam humidifiers. It is identified for 005–010 lb/hr applications operating at 110–240 volts, single phase, but Condair classifies this cylinder for special use and recommends confirming compatibility with Condair or a local representative before purchase.
Part Details:
- OEM Condair/Nortec Cylinder 201 replacement steam cylinder
- Manufacturer part number 1519001, sometimes displayed as 151-9001
- Intended for electrode steam humidification equipment
- Identified for 005–010 lb/hr, 110–240V, single-phase applications
- Supplied with the 201 cylinder and an O-ring
- Replacement selection should be based on the exact cylinder part number and the humidifier’s model, capacity, voltage, and phase
Documentation:
FAQs:
Q: Which humidifiers use the Condair 1519704 Cylinder 104?
A: The Condair 1519704 Cylinder 104 is documented for select MES-series electrode steam humidifiers with a nominal 5 lb/hr capacity. Compatibility should not be determined from the MES series name alone because cylinder selection can also depend on voltage and phase; compare the existing cylinder number and the humidifier nameplate with current Condair documentation before ordering.
Q: Is Condair part 1519704 the same as a Nortec 104 steam cylinder?
A: Yes. Part number 1519704 is identified as the Condair Cylinder 104. Match the complete manufacturer part number rather than relying only on the “104” designation.
Q: What capacity is the Condair 104 Cylinder 1519704 designed for?
A: Condair part 1519704 is associated with an MES humidifier configuration having a nominal steam output of 5 lb/hr. Capacity alone does not confirm compatibility, so the equipment’s model, voltage, phase, and existing cylinder number should also be checked.
Q: How do I confirm that 1519704 is the correct replacement cylinder for my MES humidifier?
A: Check the part number on the existing cylinder and compare the humidifier’s model, serial number, capacity, voltage, and phase with the applicable Condair parts information. Similar-looking cylinders and other MES configurations may require a different part number.
Q: When should a Condair 104 steam cylinder be replaced?
A: A Condair electrode steam cylinder is generally replaced when mineral accumulation prevents it from continuing to produce the required output or when the humidifier indicates that the cylinder has reached the end of its useful operating life. Reduced output or a service indication can support further inspection, but it does not by itself confirm that the cylinder has failed.
