Product Overview

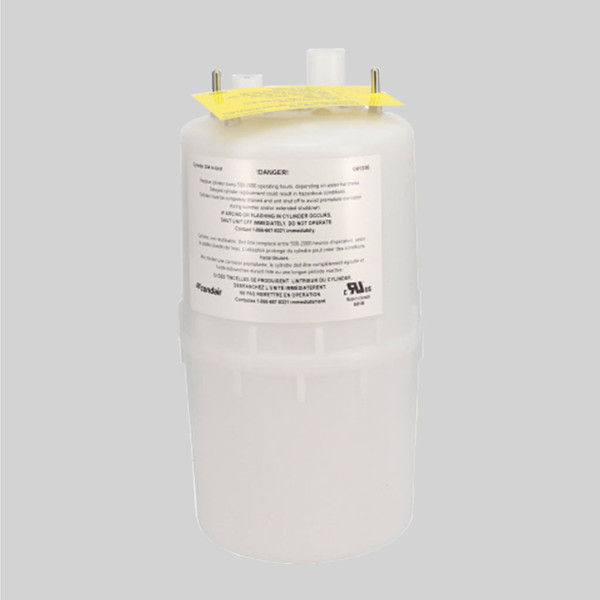

Condair 204 Steam Cylinder (151-9004)
The Condair Nortec 204 Cylinder 1519004 is a replacement steam-generating cylinder used in compatible Condair and Nortec electrode steam humidifiers. The cylinder holds water and electrode assemblies that generate steam for humidification, and it is supported by the Condair maintenance information, but it is conceptually similar to language commonly used on Nortec/Condair cylinder pages discussing mineral accumulation and cylinder replacement. According to the supplied technical sheet, Part Number 1519004 is identified as a Cylinder 204, 005-010, 440-600/1, for use in humidification systems requiring this specific cylinder configuration.
Part Details:
- 10 lbs/hr steam output
- Genuine Condair Nortec Cylinder 204 replacement cylinder
- Manufacturer Part Number: 1519004
- Steam-generating cylinder for electrode-type humidification equipment
- Identified as Cylinder 204, 005-010, 440-600/1
- Approximate cylinder dimensions shown on technical sheet: 12.40 in. height and 5.71 in. diameter
- Intended as a maintenance replacement component when cylinder service life is reached due to mineral accumulation
Documentation:
FAQs:
Q: What is the Condair Nortec 204 Cylinder 1519004?
A: The Condair Nortec 204 Cylinder 1519004 is a replacement steam-generating cylinder used in compatible Condair and Nortec electrode steam humidifiers. The cylinder contains electrodes that heat water and generate steam for humidification.
Q: What does the cylinder do inside the humidifier?
A: The cylinder serves as the steam-production chamber. When water contacts the electrodes, electrical current passes through the water, generating heat until steam is produced for the humidification system.
Q: Which humidifiers use Part Number 1519004?
A: The 1519004 Cylinder 204 is compatible with select Condair and Nortec electrode humidifiers, including equipment in the EL, NHEL, MES, NHTC, NHPC, and NHMC series that match the specified electrical configuration.
Q: When should a 1519004 cylinder be replaced?
A: Condair states that replacement is required when the cylinder reaches the end of its service life due to mineral buildup from normal steam generation. As water evaporates, minerals remain inside the cylinder and eventually limit performance.
Q: Why do humidifier cylinders need replacement?
A: Electrode cylinders are consumable components. Minerals contained in the incoming water accumulate inside the cylinder over time, eventually requiring the cylinder to be replaced rather than cleaned.
Q: Can the Condair 204 cylinder be cleaned and reused?
A: Condair's maintenance literature describes the cylinder as a replaceable/disposable component intended to be changed when it reaches the end of its service life.
Q: How long does a Cylinder 204 typically last?
A: Service life varies depending on water quality, conductivity, operating hours, and humidification demand. Often a range of 3 to 12 months is necessary, depending on operating conditions.
Q: Is the 1519004 an OEM part?
A: Yes. Condair identifies the 1519004 as an authentic Condair replacement cylinder for electrode steam humidifiers.
Q: What do the "204" and "1519004" numbers mean?
A: "204" identifies the cylinder model, while "1519004" is the manufacturer part number used for ordering and replacement identification.
Q: Is this cylinder used in electrode steam humidifiers?
A: Yes. the 1519004 is an electrode steam humidifier cylinder.
Q: What electrical configuration is associated with the 1519004 cylinder?
A: The cylinder is 204, 005-010, 440-600/1, indicating a 440-600V single-phase configuration.
Q: What happens if the wrong cylinder is installed?
A: Condair advises using cylinders designed for the specific humidifier model and cautions against using non-approved or incorrect replacement cylinders.
Q: Are third-party replacement cylinders recommended?
A: Condair specifically recommends using genuine replacement cylinders and notes that non-genuine cylinders may not be designed to interface correctly with the humidifier.
Q: Does the 1519004 cylinder include an O-ring?
A: Yes, the package includes the 204 cylinder and an O-ring.
