Product Overview

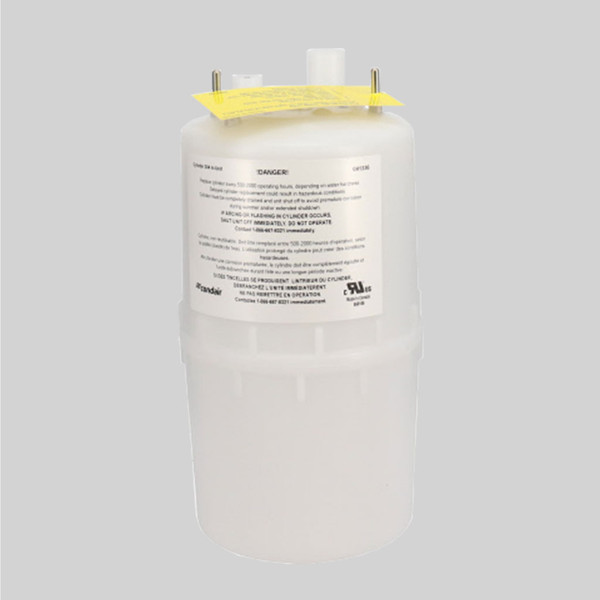

Condair 151-9704 Steam Cylinder
The Condair (Nortec) 104 Steam Cylinder, part number 1519704, is an OEM replacement cylinder for specified MES-series electrode steam humidifiers with a nominal 5 lb/hr output. It contains the water and electrodes used during steam generation and is replaced as mineral accumulation eventually limits the cylinder’s ability to operate at the required output.
Part Details:
- Compatible with 380-600V single-phase operation
- Genuine Condair replacement steam cylinder, model 104, manufacturer part number 1519704
- Designed for electrode steam humidification equipment
- Documented for select MES-series applications with a nominal 5 lb/hr steam capacity
- Supplied with the 104 cylinder and an O-ring
- Replacement selection should be based on the exact cylinder part number and the humidifier’s model, capacity, voltage, and phase
Documentation:
FAQs:
Q: Which humidifiers use the Condair 1519704 Cylinder 104?
A: The Condair 1519704 Cylinder 104 is documented for select MES-series electrode steam humidifiers with a nominal 5 lb/hr capacity. Compatibility should not be determined from the MES series name alone because cylinder selection can also depend on voltage and phase; compare the existing cylinder number and the humidifier nameplate with current Condair documentation before ordering.
Q: Is Condair part 1519704 the same as a Nortec 104 steam cylinder?
A: Yes. Part number 1519704 is identified by Condair as the Cylinder 104.
Q: What capacity is the Condair 104 Cylinder 1519704 designed for?
A: Condair associates part 1519704 with an MES configuration having a nominal steam output of 5 lb/hr. Capacity alone does not establish compatibility, so the humidifier’s voltage, phase, model, and existing cylinder number should also be checked.
Q: How do I confirm that 1519704 is the correct replacement cylinder for my MES humidifier?
A: Check the part number printed on the existing cylinder and compare the humidifier’s model, serial number, capacity, voltage, and phase with the applicable Condair parts information or equipment documentation. Condair notes that steam-cylinder part numbers can vary by equipment capacity, voltage, and configuration, so a similar appearance or shared MES series name is not sufficient to confirm fit.
Q: When should a Condair 104 steam cylinder be replaced?
A: A Condair electrode steam cylinder is generally replaced when mineral accumulation prevents it from continuing to produce the required output or when the humidifier indicates that the cylinder has reached the end of its useful operating life. Reduced output or a service indication may support further inspection, but neither should be treated as definitive proof of cylinder failure without reviewing the unit’s service information.
